Product details
| Frame | Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armor, Boost148 |
|---|---|
| *Fork | Size: XS SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 80 mm travel |
| Size: S , M , L , XL SR Suntour XCM 34, coil spring, preload, lockout, tapered steerer, 44 mm offset, Boost110, 15 mm thru axle, 120 mm travel |
|
| Max compatible fork travel | 120mm (XS & S: 100mm) |
Wheels
| Hub front | Formula DC-511, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve |
| *Tyre | Size: XS , S Bontrager XR3 Comp, wire bead, 30 tpi, 27.5x2.35" |
| Size: M , L , XL Bontrager XR3 Comp, wire bead, 30 tpi, 29x2.30" |
|
| Max tyre size | Frame: 29x2.60" or 27.5x2.8" (XS & S: 27.5x2.60") Fork: See manufacturer |
Drivetrain
| Shifter | Shimano Deore M4100, 10 speed |
|---|---|
| Rear derailleur | Shimano Deore M5120, long cage |
| Crank | FSA Bosch CK-220, 36T ring, 165 mm length |
| Cassette | Shimano Deore M4100, 11-46, 10-speed |
| Chain | KMC X10, 10-speed |
| Pedal | VP-536 nylon platform |
| Max. chainring size | 38T |
Components
| Saddle | Bontrager Commuter Comp |
|---|---|
| *Seatpost | Size: XS , S Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
| Size: M Bontrager alloy, 31.6 mm, 12 mm offset, 360 mm length |
|
| Size: L , XL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar | Size: XS , S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
| Size: M , L , XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| *Grips | Size: XS , S , M , L , XL Bontrager XR Endurance Comp |
| Size: XS , S , M , L , XL Bontrager XR Endurance Comp, lock-on |
|
| *Stem | Size: XS Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
| Size: S , M Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
|
| Size: L , XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Brake rotor | Tektro, 6-bolt, 203 mm |
| Brake Set | Tektro HD-M275 hydraulic disc |
Accessories
| Battery | Bosch PowerTube, vertical, 500 wh |
|---|---|
| Charger | Bosch compact 2A, 100–240V, smart system |

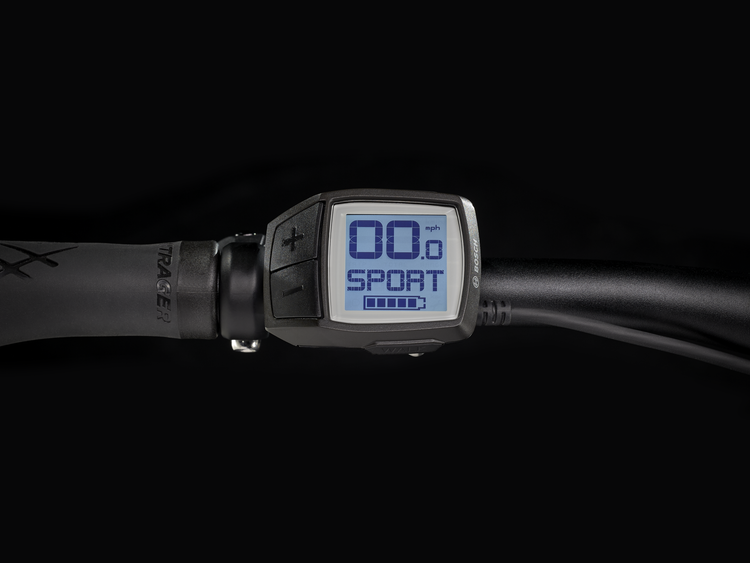

| Controller | Bosch Purion |

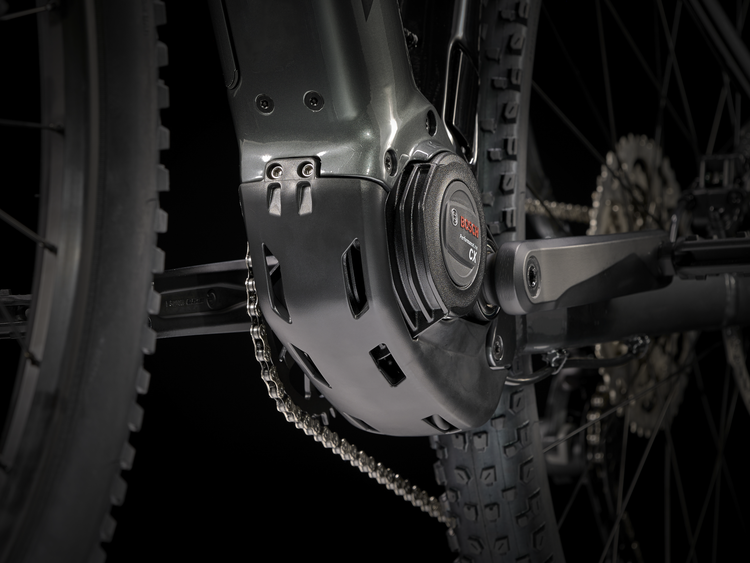

| Motor | Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25 km/h (15.5 mph) max assist, 32 km/h for New Zealand |
Weight
| Weight | M - 23.37 kg/51.53 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
| Sizing | ||
|
Size-table |
||
| Size | Rider Height | Inseam |
| XS | 145 - 155 cm | 69 - 73 cm |
| 4'9" - 5'1" | 27" - 29" | |
| S | 155 - 165 cm | 74 - 78 cm |
| 5'1" - 5'5" | 29" - 31" | |
| M | 165 - 176 cm | 79 - 83 cm |
| 5'5" - 5'9" | 31" - 33" | |
| ML | 173 - 180 cm | 81 - 86 cm |
| 5'8" - 5'11" | 32" - 34" | |
| L | 177 - 188 cm | 84 - 89 cm |
| 5'10" - 6'2" | 33" - 35" | |
| XL | 188 - 195 cm | 89 - 91 cm |
| 6'2" - 6'5" | 35" - 36" | |
