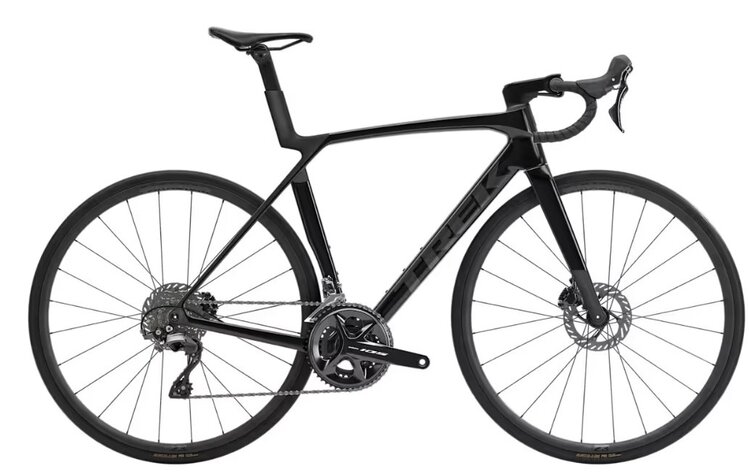

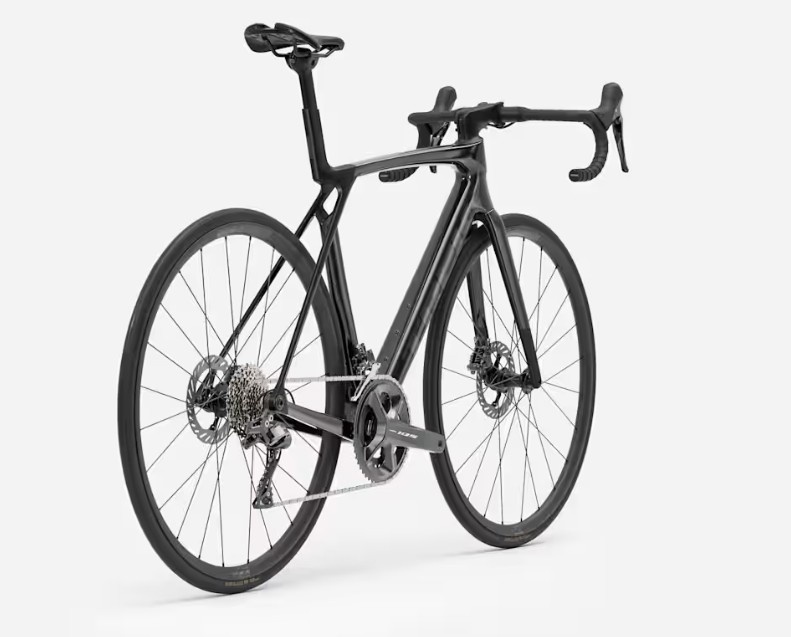

Product details
Key Features:
-

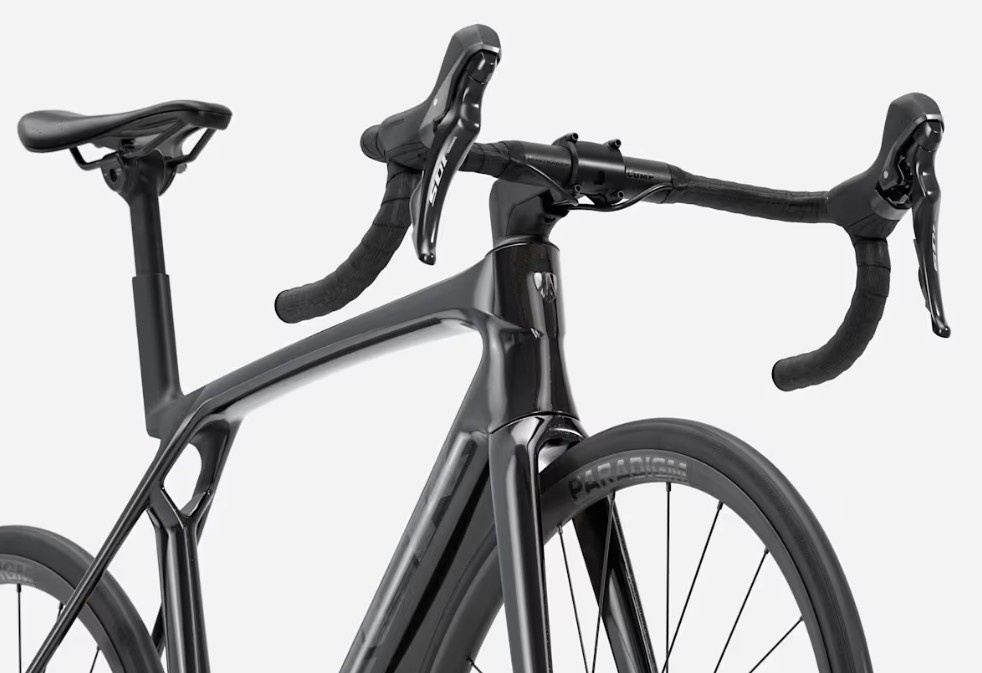

500 Series OCLV Carbon frame with Full System Foil aero shaping
-
Shimano 105 2×12 speed drivetrain for crisp mechanical shifting
-

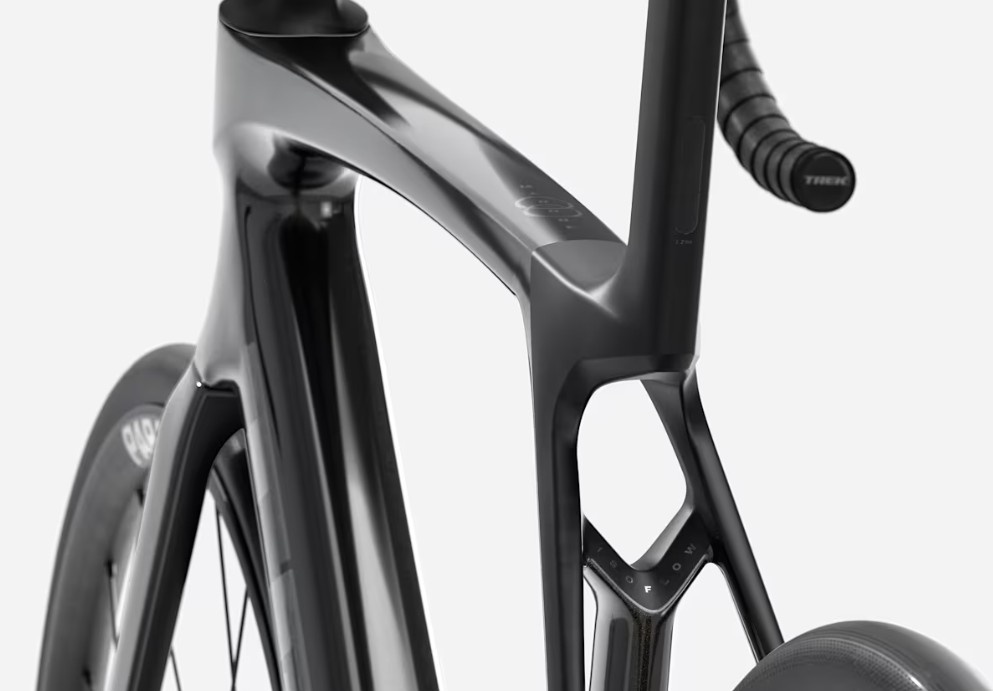

IsoFlow comfort technology for reduced fatigue on long rides
-
Hydraulic disc brakes for confident all‑weather stopping
-
Bontrager tubeless‑ready wheels & 28 mm tyres for improved ride quality
-
Race‑oriented geometry for fast climbs and descents
Frameset
Frame
500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru-axle
Weight
Weight
ML - 8.64 kg / 19.05 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

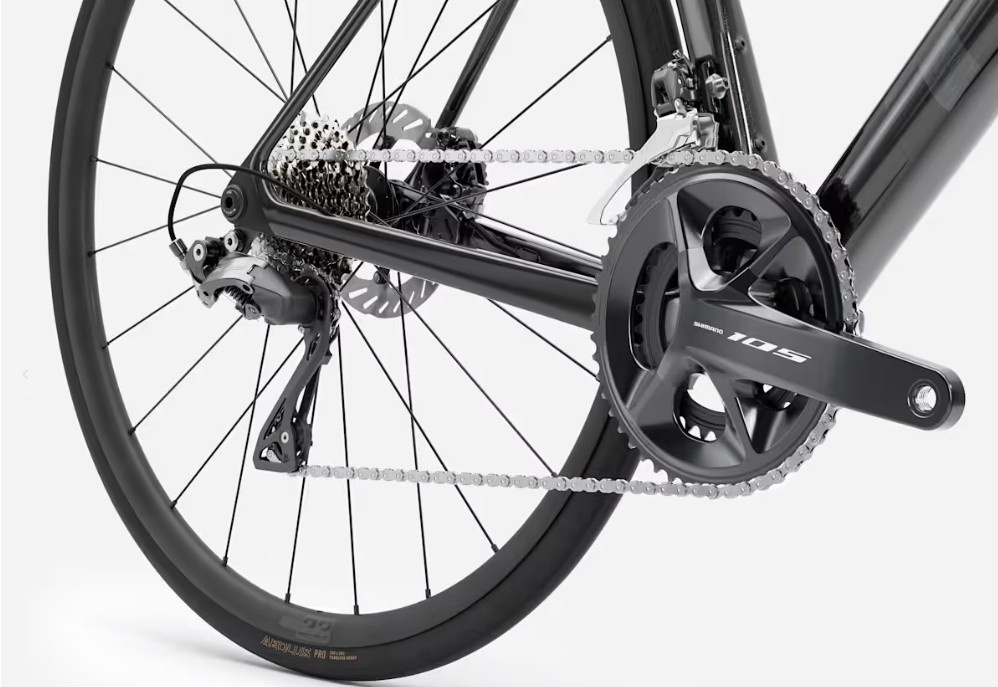

Drivetrain
Shifter
Shimano 105 R7120, 12-speed
Front derailleur
Shimano 105 R7100, braze-on, down swing
Rear derailleur
Shimano 105 R7100, 36T max cog
*Crank
Size: XS, S
Shimano 105 R7100, 50/34, 165 mm length
Size: M, ML
Shimano 105 R7100, 50/34, 170 mm length
Size: L, XL
Shimano 105 R7100, 50/34, 172.5 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano 105 7101, 11-34, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 54T, 2x: 56/43
Wheels
*Hub front
Size: XS, S, M, ML, L, XL
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Size: XS, S, M, ML, L, XL
Bontrager alloy, sealed bearing, CentreLock disc, 100x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
*Hub rear
Size: XS, S, M, ML, L, XL
Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Size: XS, S, M, ML, L, XL
Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim
Bontrager Paradigm 23, Tubeless Ready, 24-hole, 23 mm width, Presta valve
Spokes
14 g stainless steel, black
*Tyre
Size: XS, S, M, ML, L, XL
Bontrager Aeolus Pro, Tubeless Ready, aramid bead, 120 tpi, 700x28 mm
Size: XS, S, M, ML, L, XL
Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 170 tpi, 700x28 mm
Tyre part
Bontrager TLR sealant, 180 ml/6 oz
Max tyre size
32 mm (as measured, see manual for details)
Components
Saddle
Bontrager Aeolus Elite, austenite rails, 145 mm width
Seatpost
Madone aero carbon seat post, 0 mm offset, short length

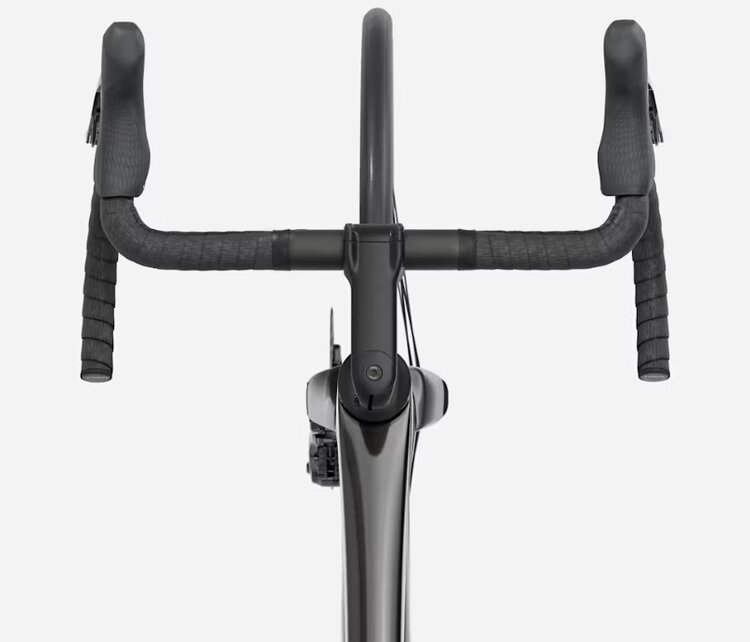

*Handlebar
Size: XS
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
Size: S, M
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
Size: ML, L
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
Size: XL
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Handlebar tape
*Stem
Size: XS
Trek RCS Pro, -7-degree, 80 mm length
Size: S, M
Trek RCS Pro, -7-degree, 90 mm length
Size: ML, L
Trek RCS Pro, -7-degree, 100 mm length
Size: XL
Trek RCS Pro, -7-degree, 110 mm length
Brake
Shimano 105 hydraulic disc, flat mount
Brake rotor
Shimano CL700, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front, 160 mm rear
