Product details
| Frame | OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel |
|---|---|
| Fork | RockShox 35 Gold RL, DebonAir spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |
| *Shock | Size: S Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235x32.5 mm |
| Size: M , L , XL Trek IsoStrut, Fox Performance shock, air spring, DPS 2-position remote damper, 235 mm x 32.5 mm |
|
| Max compatible fork travel | 120mm (531mm axle-to-crown) |
Wheels
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| Rim | Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Max tyre size | Frame: 29x2.40" Fork: See manufacturer |
Drivetrain
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|
| Rear derailleur | Shimano XT M8100, long cage |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100 |
| Max. chainring size | 32T with 52mm chainline |
Components
| Saddle | Bontrager Arvada, hollow chromoly rails, 138 mm width |
|---|---|
| *Seatpost | Size: S TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length |
| Size: M , L , XL TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length |
|
| *Handlebar | Size: S Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width |
| Size: M , L , XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: S , M Bontrager Rhythm Comp, 31.8mm, Knock Block, 0-degree, 60 mm length |
| Size: L , XL Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 70 mm length |
|
| Brake | Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
| Brake rotor | Shimano RT66, 6-bolt, 180mm |
Accessories
| E-bike system | Fazua Ride Trail 50 motor |
|---|---|

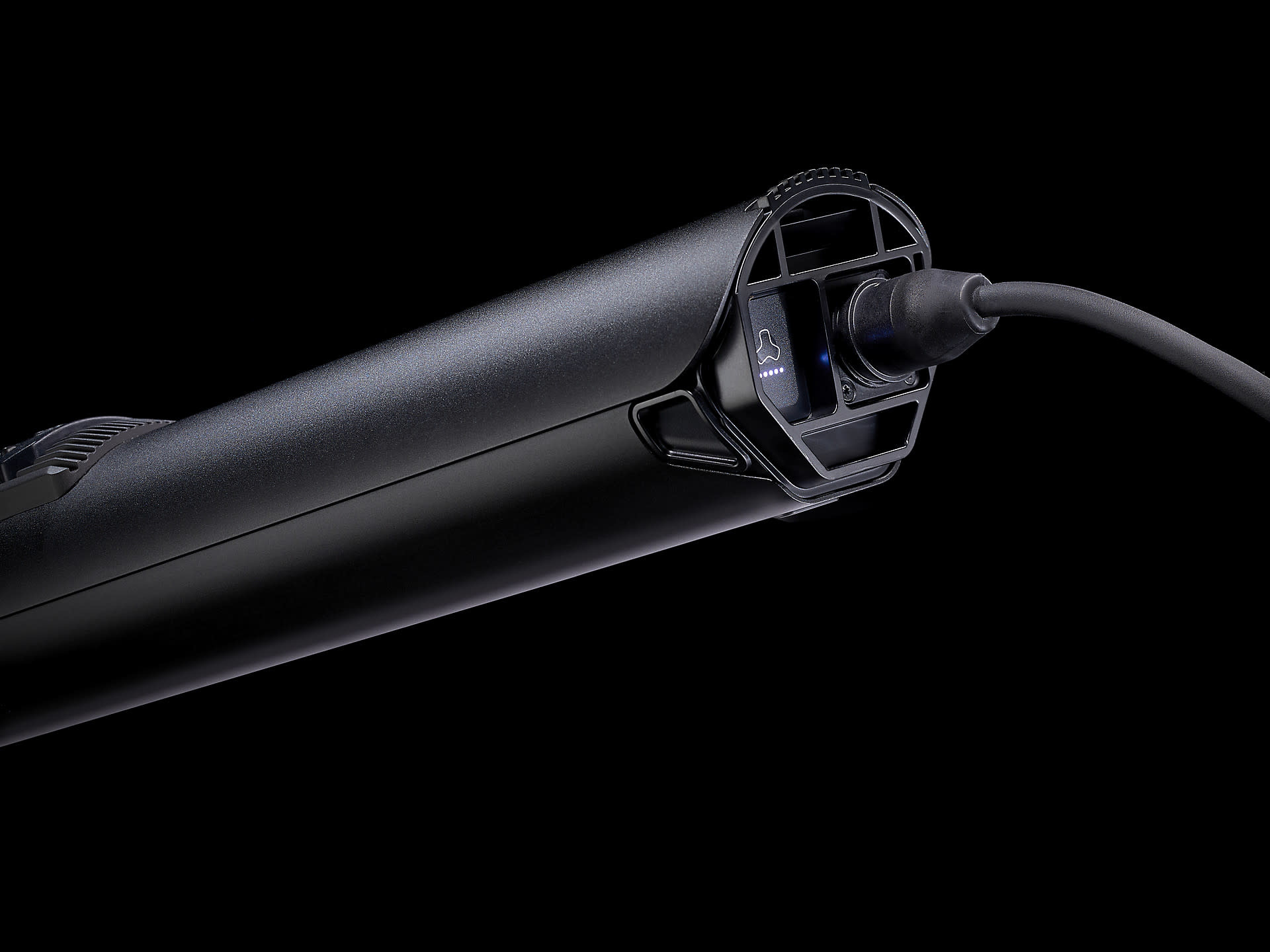

| Battery | Fazua Evation battery, 250 Wh |
| Charger | Fazua Evation charger, 220-240V |
| Controller | Fazua Remote bX |
Weight
| Weight | M - 18.48 kg / 40.75 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
| Sizing | ||
|
Size-table |
||
| Size | Rider Height | Inseam |
| S | 155 - 165 cm | 74 - 78 cm |
| 5'1" - 5'5" | 29" - 31" | |
| M | 165 - 176 cm | 79 - 83 cm |
| 5'5" - 5'9" | 31" - 33" | |
| L | 177 - 188 cm | 84 - 89 cm |
| 5'10" - 6'2" | 33" - 35" | |
| XL | 188 - 195 cm | 89 - 91 cm |
| 6'2" - 6'5" | 35" - 36" | |
