Product details

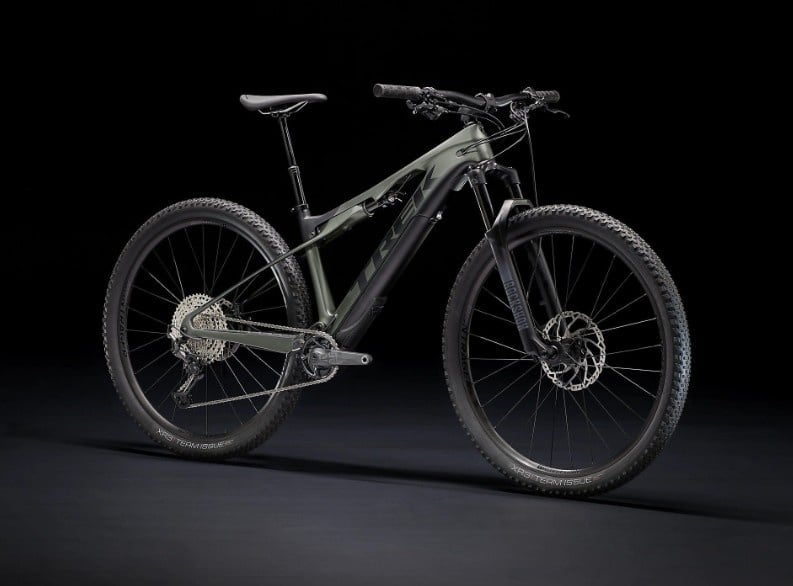

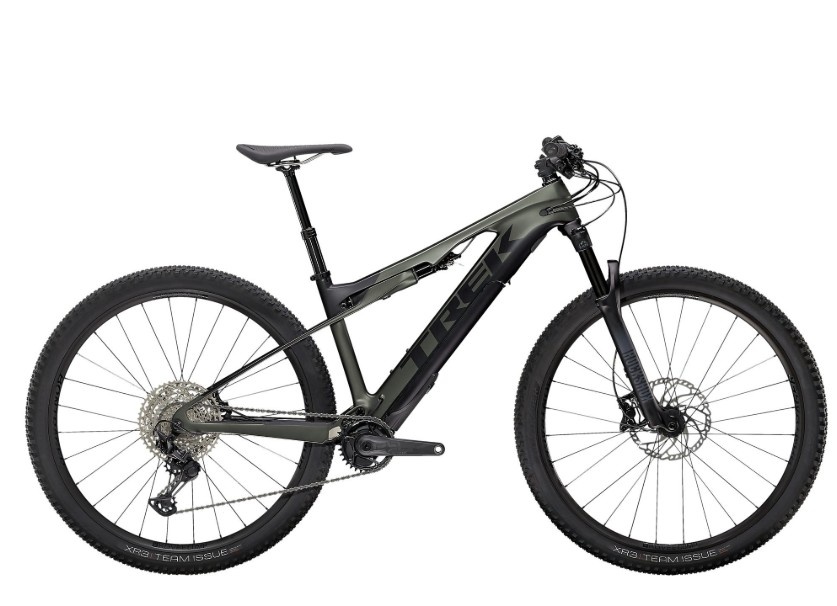

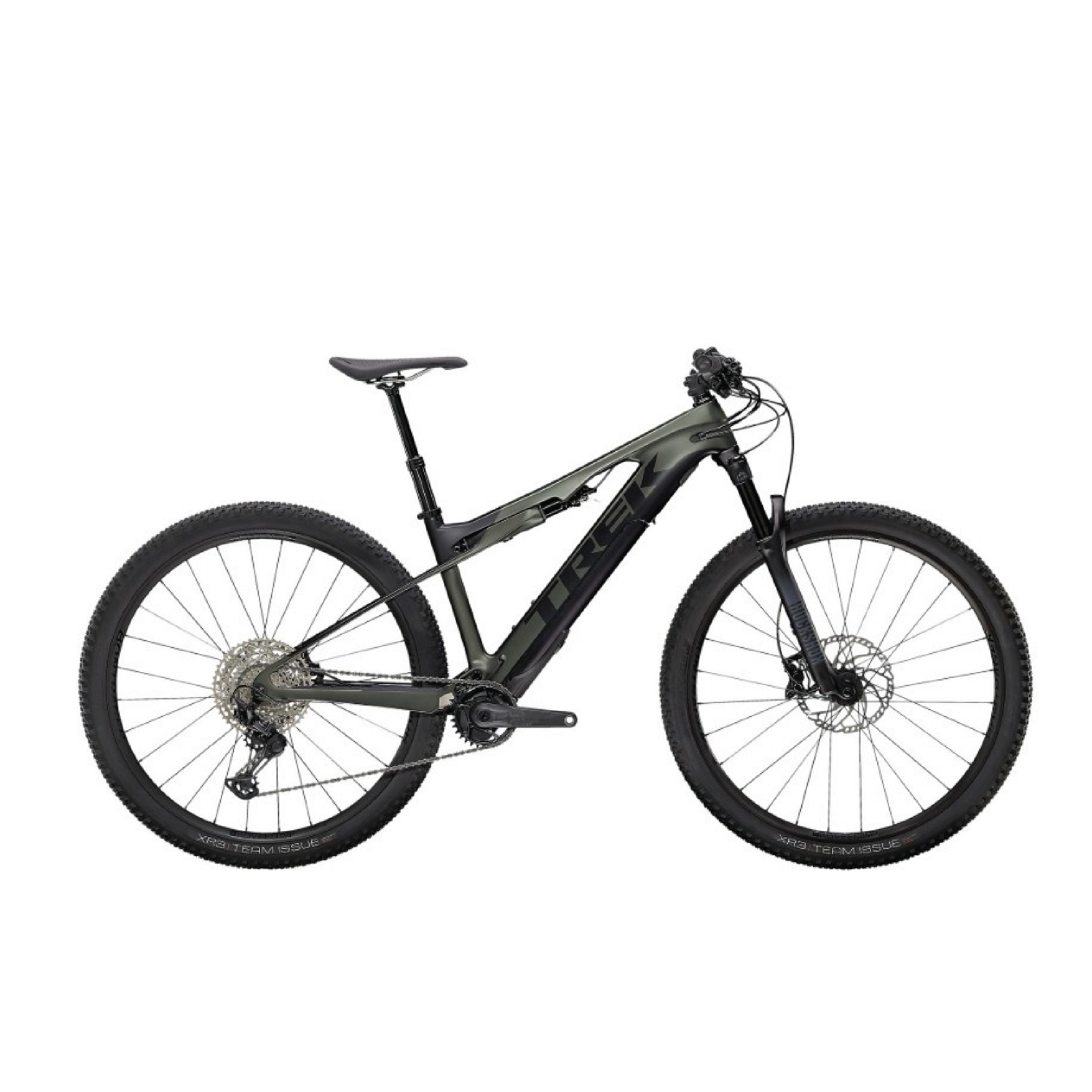

The E-Caliber 9.6 is a carbon electric mountain bike that rides – and looks – like a traditional cross-country bike. The compact Fazua drive system lets you do more of what you love with subtle, natural-feeling assist that doesn't overpower the physical and technical challenges of the trail.
|
Frame |
OCLV Mountain Carbon main frame and stays, IsoStrut, tapered head tube, Knock Block, Control Freak internal routing, Boost148, 60 mm travel |
|
Fork |
RockShox 35 Gold RL, DebonAir spring, Motion Control damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |
|
*Shock |
Size: S |
|
Size: M , L , XL |
|
|
Max compatible fork travel |
120mm (531mm axle-to-crown) |
Wheels
|
Hub front |
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle |
|
Hub rear |
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle |
|
Skewer rear |
Bontrager Switch thru axle, removable lever |
|
Rim |
Bontrager Kovee Comp, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
|
Tyre |
Bontrager XR3 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.40" |
|
Tyre part |
Bontrager TLR sealant, 180 ml/6 oz |
|
Max tyre size |
Frame: 29x2.40" Fork: See manufacturer |
Drivetrain
|
Shifter |
Shimano Deore M6100, 12-speed |
|
Rear derailleur |
Shimano XT M8100, long cage |
|
Cassette |
Shimano Deore M6100, 10-51, 12-speed |
|
Chain |
Shimano Deore M6100 |
|
Max. chainring size |
32T with 52mm chainline |
Components
|
Saddle |
Bontrager Arvada, hollow chromoly rails, 138 mm width |
|
*Seatpost |
Size: S |
|
Size: M , L , XL |
|
|
*Handlebar |
Size: S |
|
Size: M , L , XL |
|
|
Grips |
Bontrager XR Trail Comp, nylon lock-on |
|
*Stem |
Size: S , M |
|
Size: L , XL |
|
|
Brake |
Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper |
|
Brake rotor |
Shimano RT66, 6-bolt, 180mm |
Accessories
|
E-bike system |
Fazua Ride Trail 50 motor |
|
Battery |
Fazua Evation battery, 250 Wh |
|
Charger |
Fazua Evation charger, 220-240V |
|
Controller |
Fazua Remote bX |
Weight
|
Weight |
M - 18.48 kg / 40.75 lbs (with TLR sealant, no tubes) |
|
Weight limit |
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
|
Sizing |
||
|
Size-table |
||
|
Size |
Rider Height |
Inseam |
|
S |
155 - 165 cm |
74 - 78 cm |
|
5'1" - 5'5" |
29" - 31" |
|
|
M |
165 - 176 cm |
79 - 83 cm |
|
5'5" - 5'9" |
31" - 33" |
|
|
L |
177 - 188 cm |
84 - 89 cm |
|
5'10" - 6'2" |
33" - 35" |
|
|
XL |
188 - 195 cm |
89 - 91 cm |
|
6'2" - 6'5" |
35" - 36" |
|
