Product details
Frameset
| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | Dual Sport carbon, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve |
| Tyre | Bontrager GR0 Elite, wire bead, puncture protection, 60 tpi, 650x50 mm |
| Max tyre size | 27.5x2.00" |

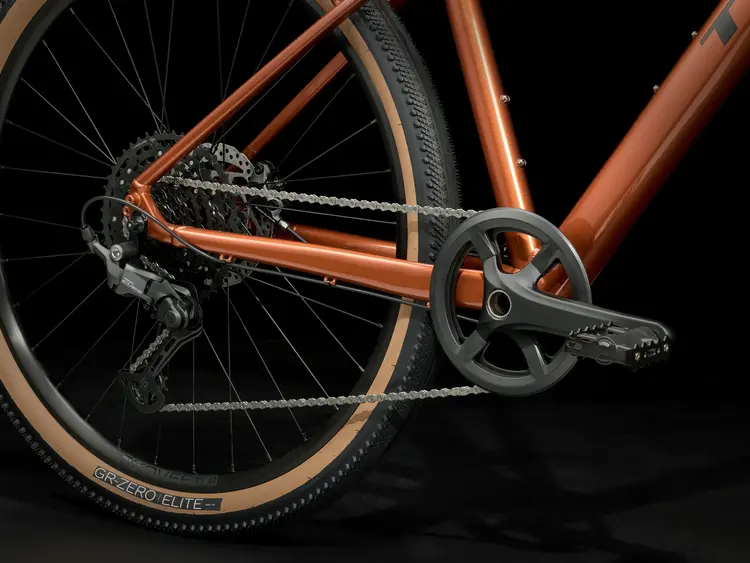

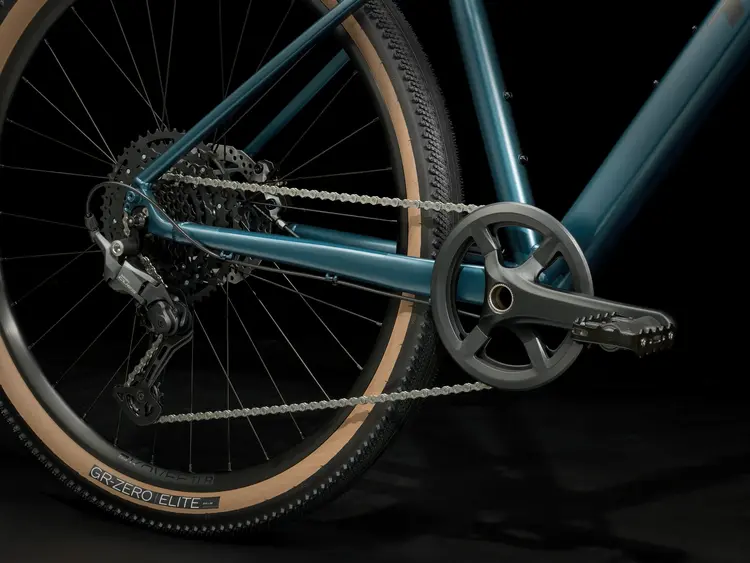

Drivetrain
| Shifter | Shimano CUES U6000 w/optical gear display, 10-speed |
|---|---|
| Rear derailleur | Shimano CUES U6000 GS |
| *Crank | Size: XS, S, M Prowheel alloy, 40T narrow-wide ring, 170 mm length |
| Size: L, XL Prowheel alloy, 40T narrow-wide ring, 175 mm length |
|
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedal | Wellgo nylon body, alloy cage |
| Max. chainring size | 1x: 42T, 2x/3x: 48T |
Components
| Saddle | Bontrager H1 |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

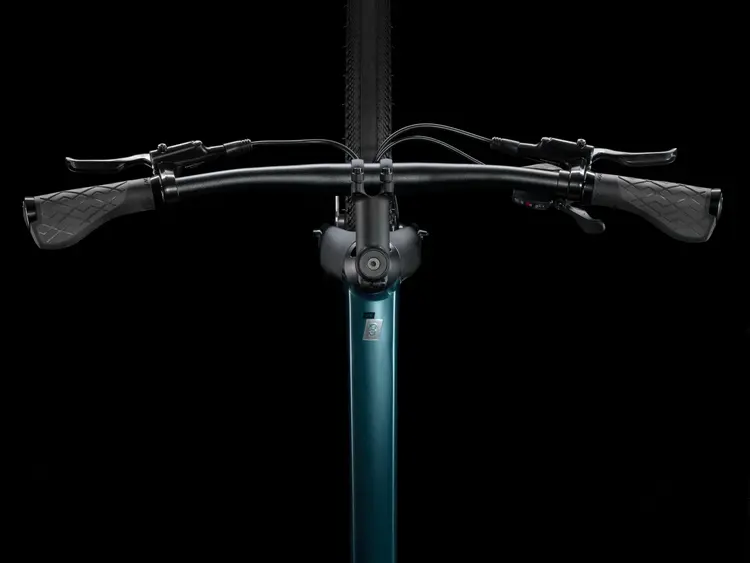

| *Handlebar | Size: XS, S Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width |
| Size: M, L Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width |
|
| Size: XL Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 690 mm width |
|
| Grips | Bontrager XR Endurance Elite |
| *Stem | Size: XS, S Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
| Size: M, L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|
| Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 90 mm length |
|
| Brake | Shimano hydraulic disc, MT201 lever, UR300 calliper |
| *Brake rotor | Size: XS, S, M, L, XL Shimano RT26, 6-bolt,160 mm |
| Size: XS, S, M, L, XL Shimano RT26, 6-bolt, 160 mm |
|
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
Weight
| Weight | M - 12.05 kg/26.57 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
| Sizing | ||
| Size | Rider Height | Inseam |
| XS | 147 - 155 cm | 69 - 73 cm |
| 4'10" - 5'1" | 27" - 29" | |
| S | 155 - 165 cm | 72 - 78 cm |
| 5'1" - 5'5" | 28" - 31" | |
| M | 165 - 175 cm | 77 - 83 cm |
| 5'5" - 5'9" | 30" - 33" | |
| L | 175 - 186 cm | 82 - 88 cm |
| 5'9" - 6'1" | 32" - 35" | |
| XL | 186 - 197 cm | 87 - 93 cm |
| 6'1" - 6'6" | 34" - 37" | |
