Product details

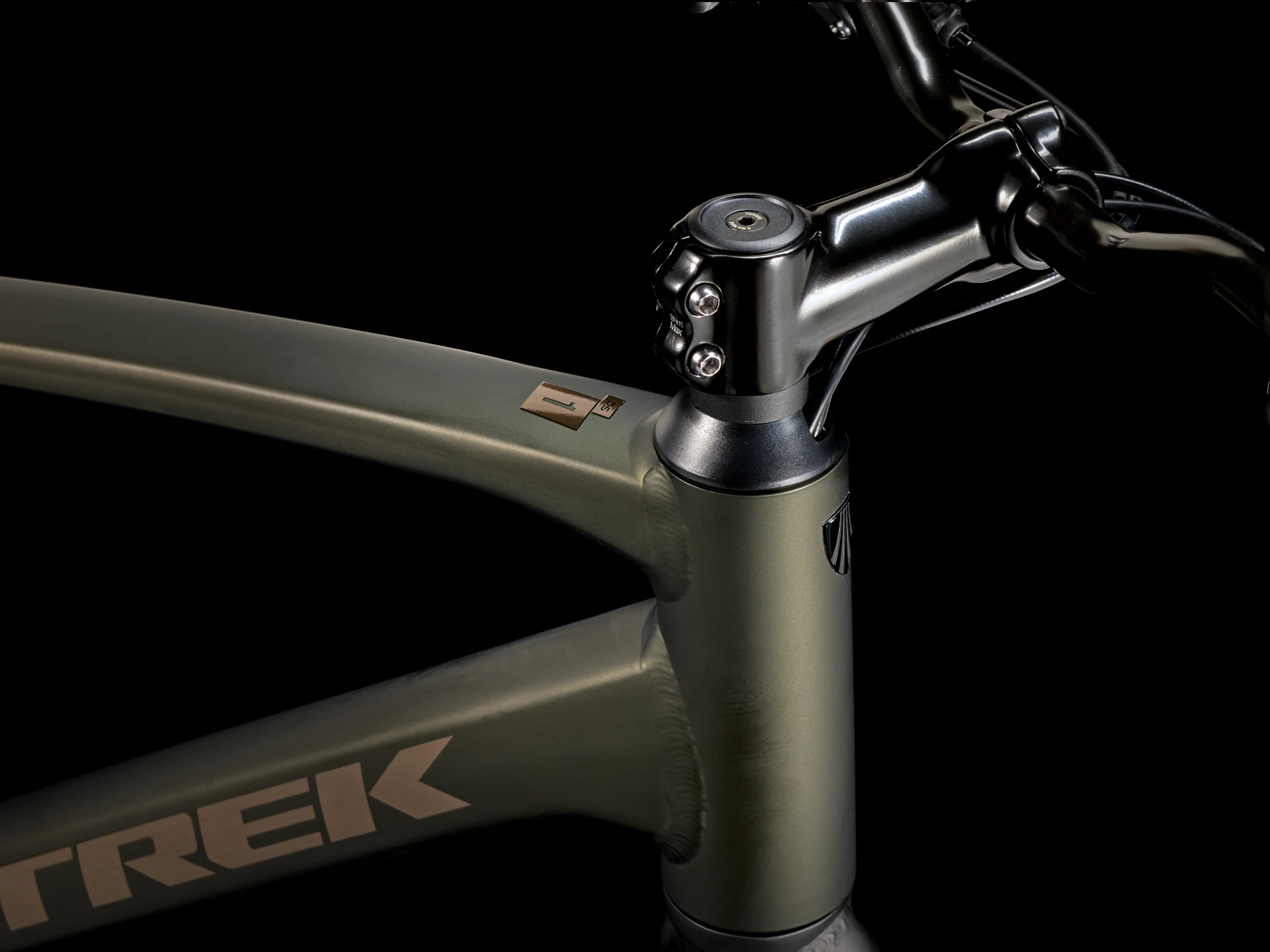

| Frame | Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR |
|---|---|
| Fork | Dual Sport steel, internal brake routing, mudguard mounts, rack mounts, ThruSkew 5 mm QR |
Wheels
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Skewer front | 139x5 mm bolt-on |
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 152x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| Spokes | 14 g stainless steel, black |
| Tyre | Bontrager GR0 Comp, wire bead, 60 tpi, 650x50 mm |
| Max tyre size | 27.5x2.00" |

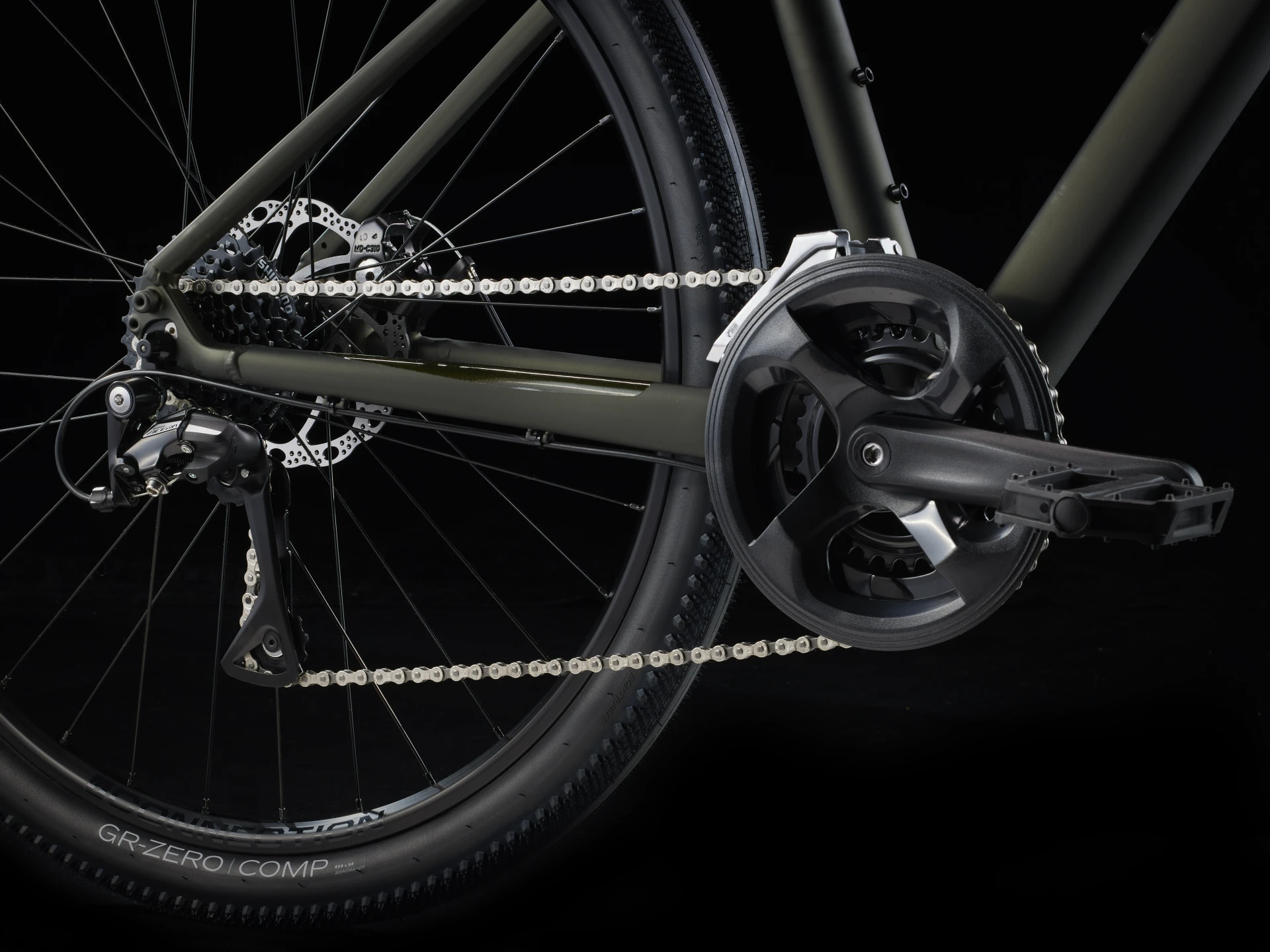

Drivetrain
| *Shifter | Size: XS, S, M, L, XL Shimano EF500, 2-speed |
|---|---|
| Size: XS, S, M, L, XL Shimano EF500, 8-speed |
|
| Front derailleur | Shimano Tourney TY606, 31.8/34.9 mm clamp, top swing, dual pull |
| Rear derailleur | Shimano Acera M3020-8, 40T max cog |
| Crank | Forged alloy, 46/30, chainguard, 170 mm length |
| Bottom bracket | Sealed cartridge, 68 mm |
| Cassette | Shimano 8-speed, 12-32T |
| Chain | KMC Z8.3 |
| Pedal | Wellgo nylon platform |
| Max. chainring size | 1x: 42T, 2x/3x: 48T |
Components

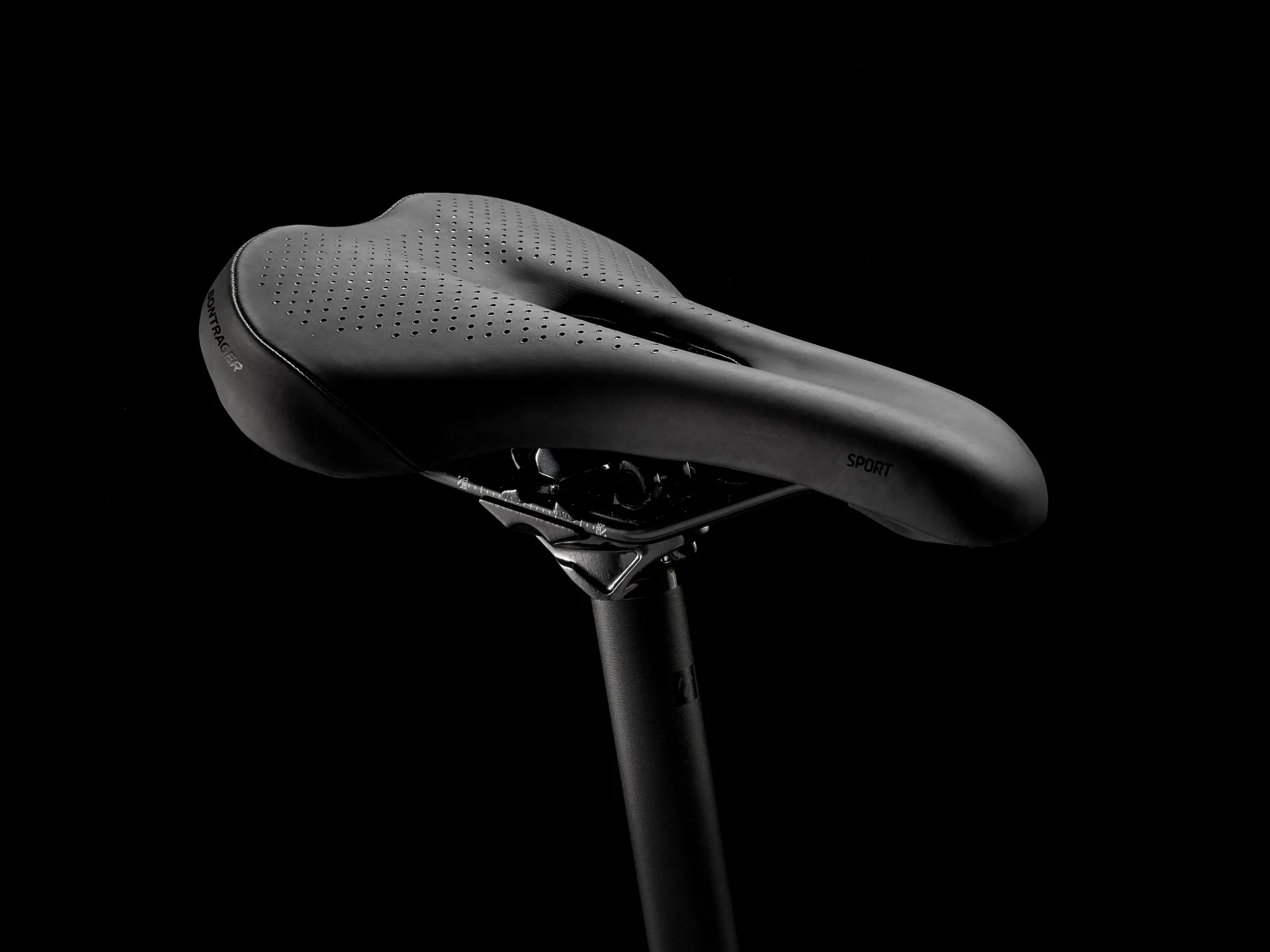

| Saddle | Bontrager Sport |
|---|---|
| Seatpost | Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length |

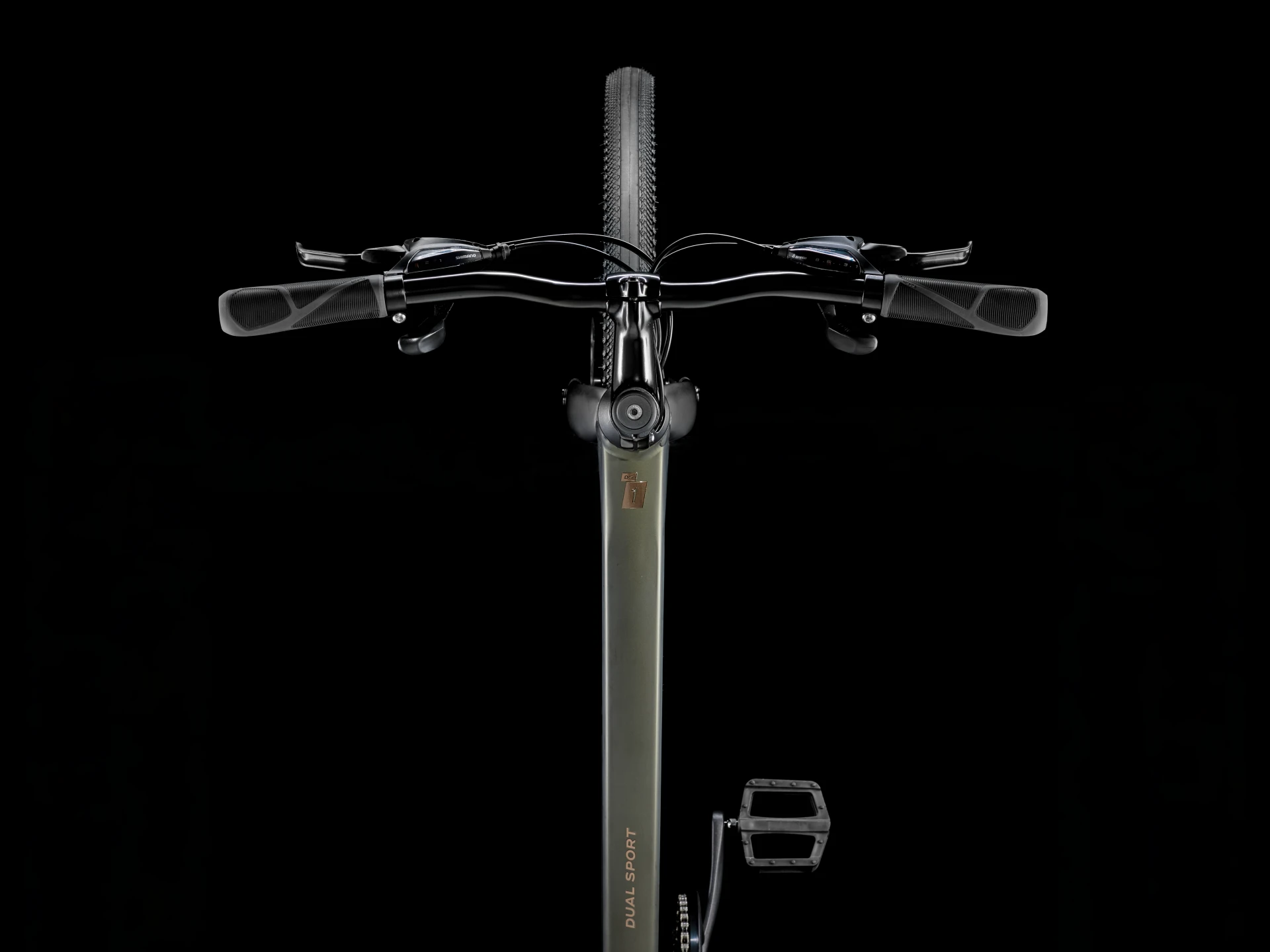

| *Handlebar | Size: XS, S, M Bontrager Riser, steel, 25.4 mm, 30 mm rise, 600 mm width |
| Size: L, XL Bontrager Riser, steel, 25.4 mm, 30 mm rise, 620mm width |
|
| Grips | Bontrager Satellite |
| *Stem | Size: XS, S, M Bontrager alloy, 25.4 mm clamp, 10-degree, 90 mm length |
| Size: L, XL Bontrager alloy, 25.4 mm clamp, 10-degree, 110 mm length |
|

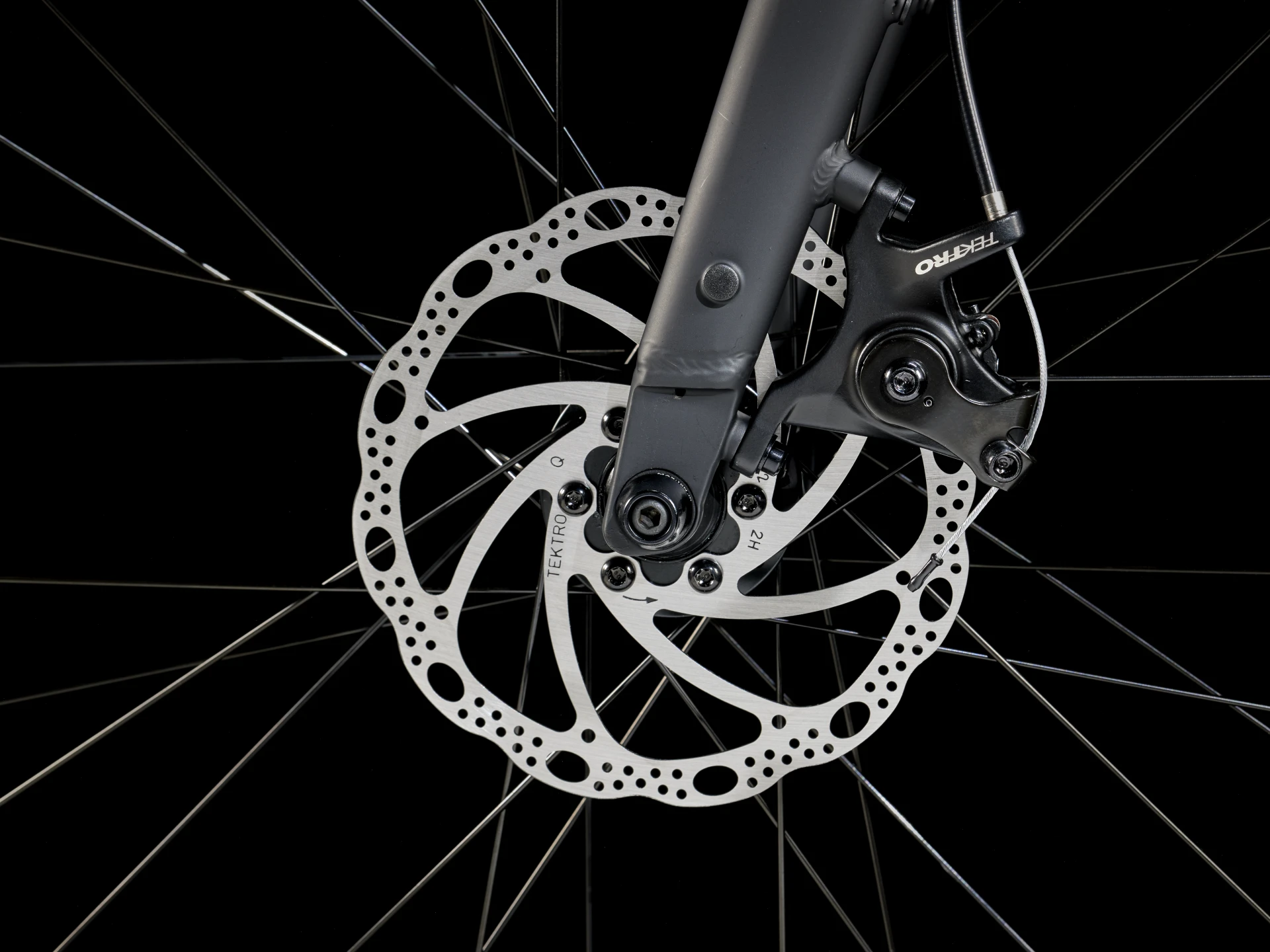

| Brake | Tektro MD-U310 mechanical disc |
| Brake rotor | Tektro wave, 6-bolt, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
Weight
| Weight | M - 14.05 kg / 30.98 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
Sizing
| Size | Rider Height | Inseam |
|---|---|---|
| XS |
147 - 155 cm 4'10" - 5'1" |
69 - 73 cm 27" - 29" |
| S |
155 - 165 cm 5'1" - 5'5" |
72 - 78 cm 28" - 31" |
| M |
165 - 175 cm 5'5" - 5'9" |
77 - 83 cm 30" - 33" |
| L |
175 - 186 cm 5'9" - 6'1" |
82 - 88 cm 32" - 35" |
| XL |
186 - 197 cm 6'1" - 6'6" |
87 - 93 cm 34" - 37" |
