Product details

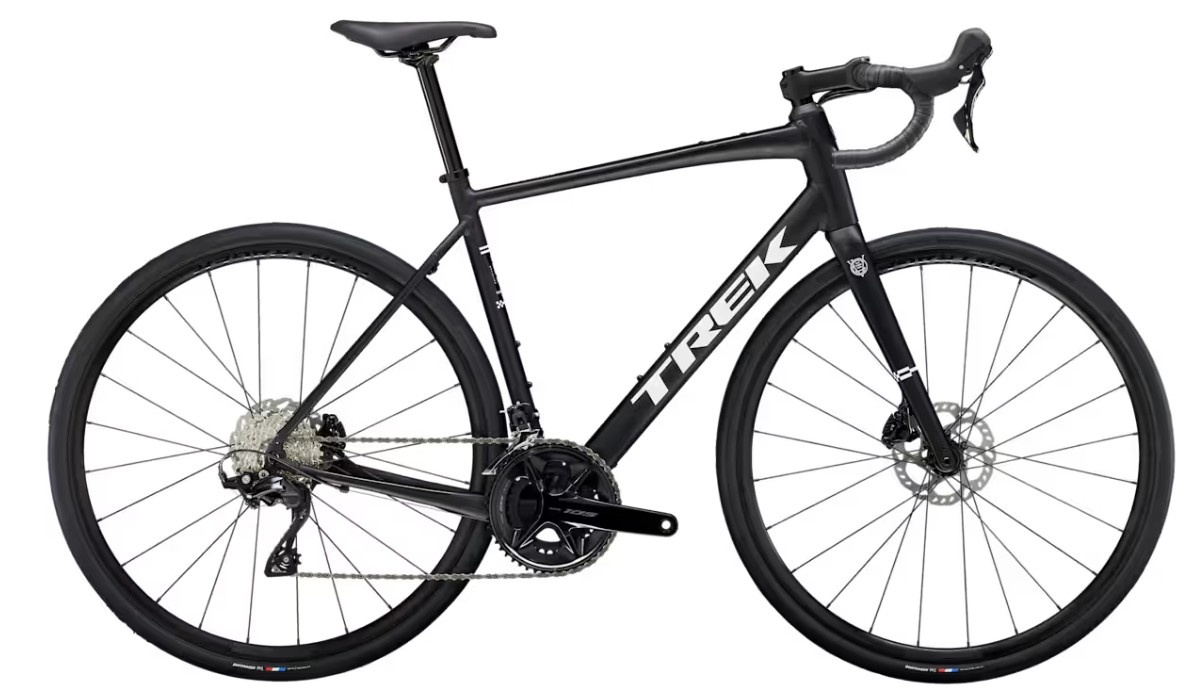

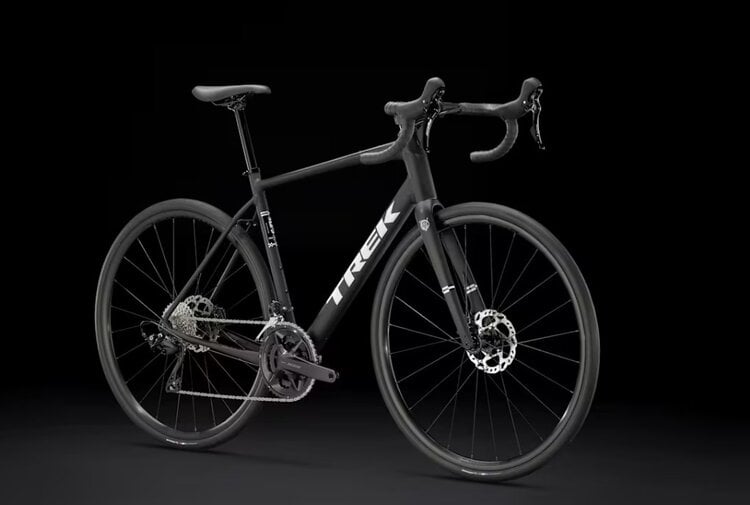

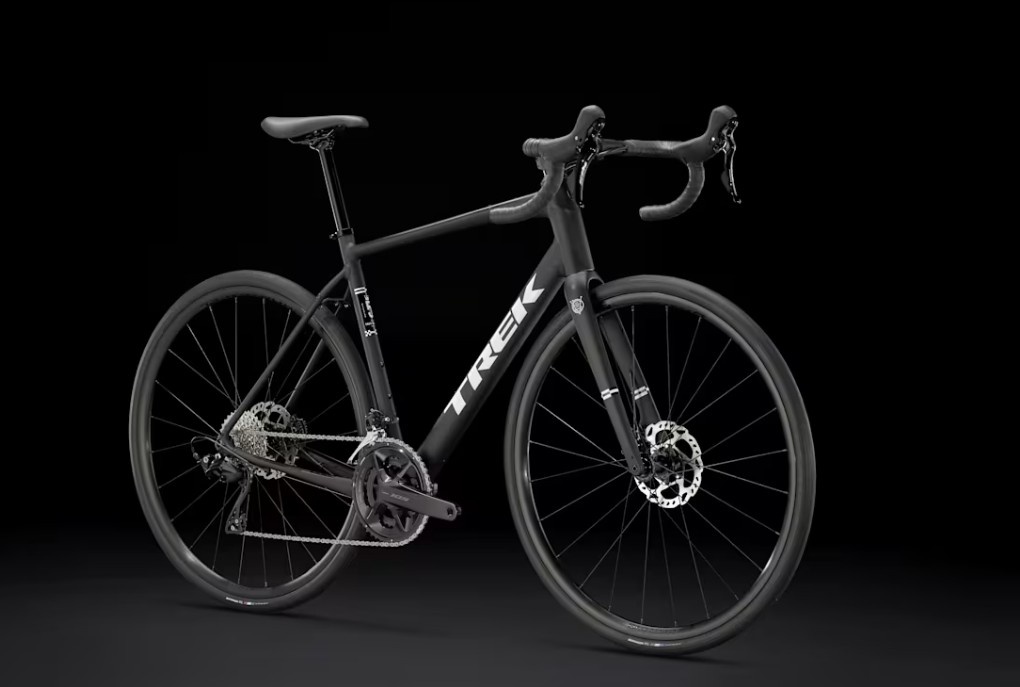

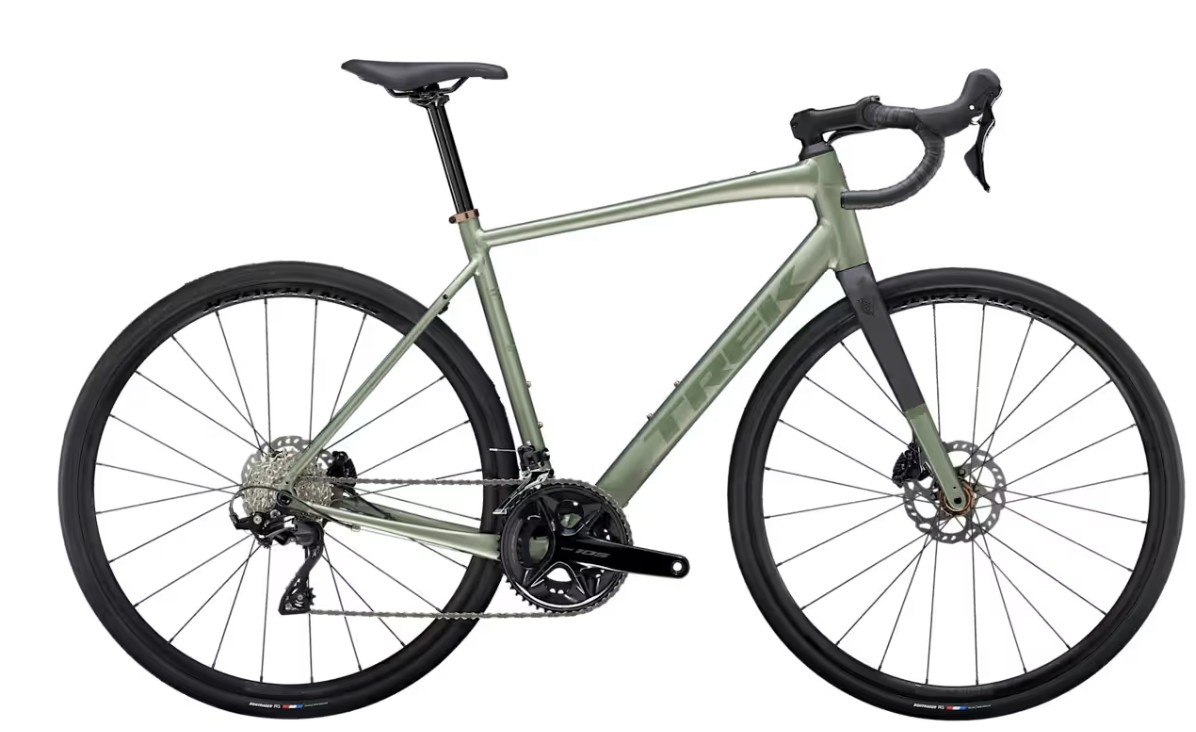

Domane AL 5 is perfect for casual pedaling, group rides, fast commutes, and even venturing beyond paved paths to most gravel roads.

This model features the latest 12-speed Shimano 105 drivetrain, offering crisp shifting and a wide gear range for both climbing and high-speed riding. Hydraulic disc brakes ensure powerful and consistent braking in all weather conditions.

With wide tyre clearance, tubeless-ready wheels, internal cable routing, and mounts for racks and fenders, the Domane AL 5 Gen 4 is built for real-world practicality — making it one of the best choices for endurance riders who want performance without compromising comfort.

Key Features

• Lightweight 100 Series Alpha Aluminum endurance road frame

• Carbon fork for improved comfort and vibration reduction

• Shimano 105 12-speed drivetrain for smooth and reliable shifting

• Shimano hydraulic disc brakes for confident stopping power

• Tubeless-ready wheels for better puncture protection and comfort

• Clearance for wider tyres (up to approx. 38 mm depending on setup)

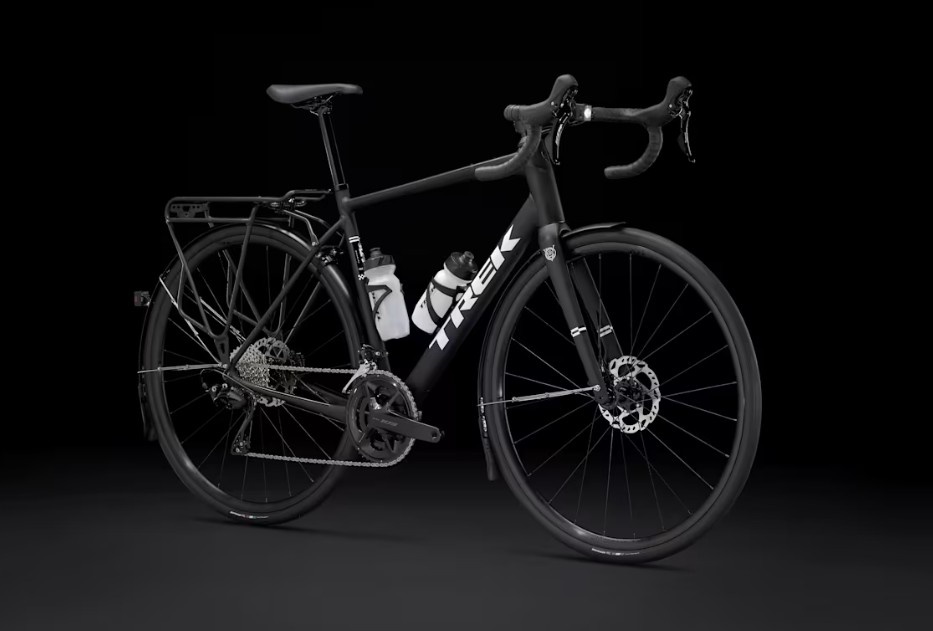

• Mounts for racks, fenders, and top-tube bags

• Internal cable routing for a clean, modern look

Full Specifications

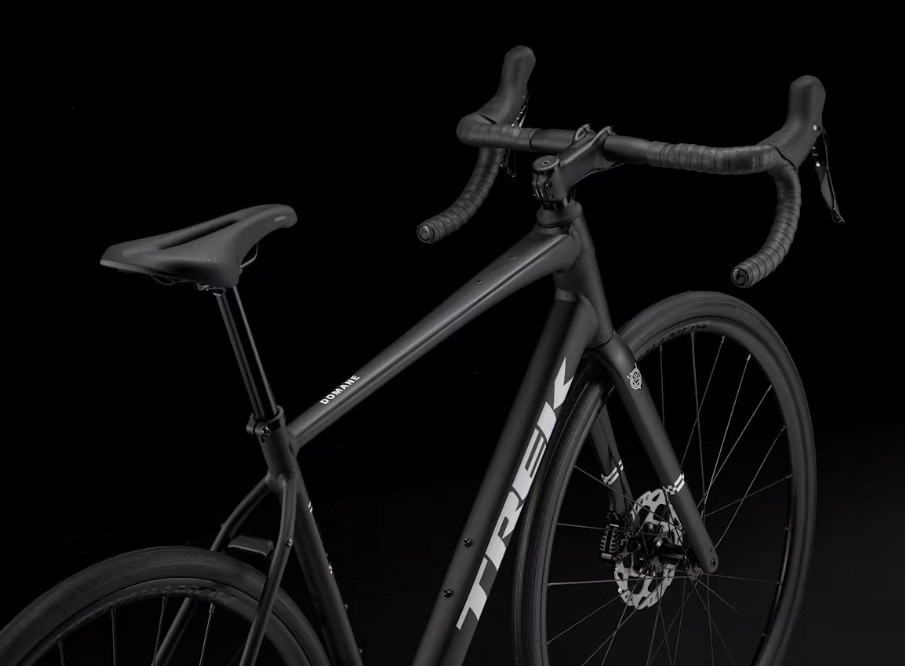

Frame

• 100 Series Alpha Aluminum

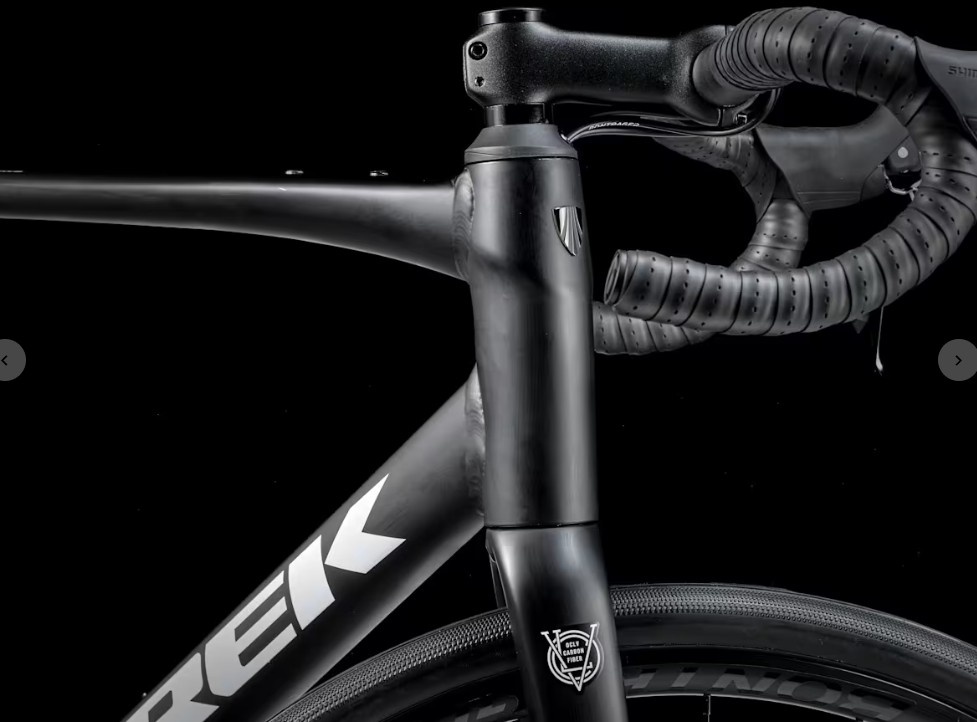

• Tapered head tube

• Internal cable routing

• Flat-mount disc brakes

• 142×12 mm rear thru-axle

• Rack and fender mounts

• UDH derailleur hanger compatible

Fork

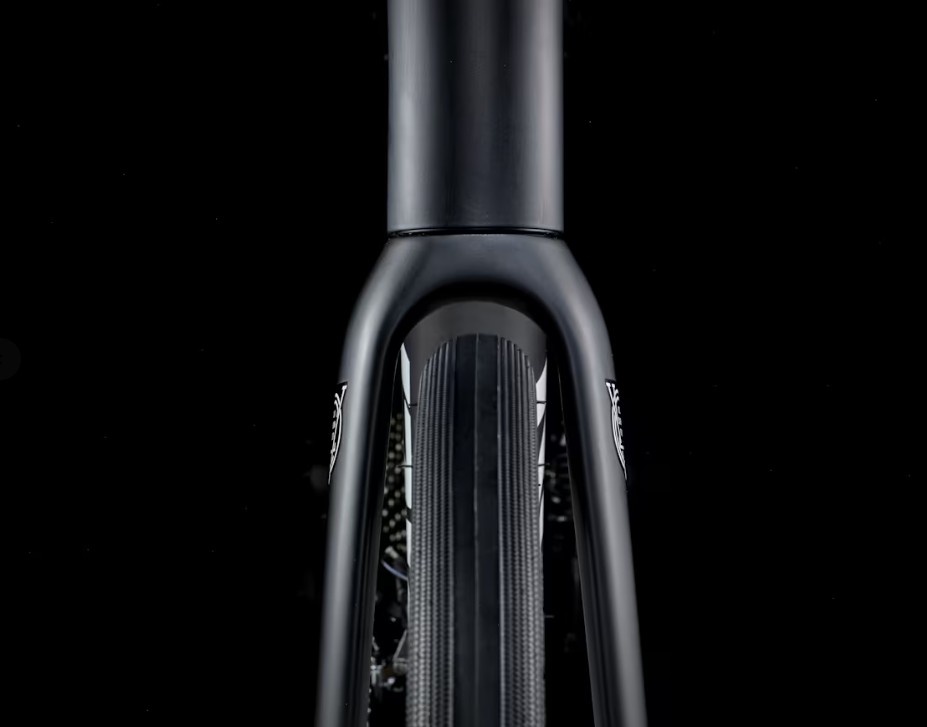

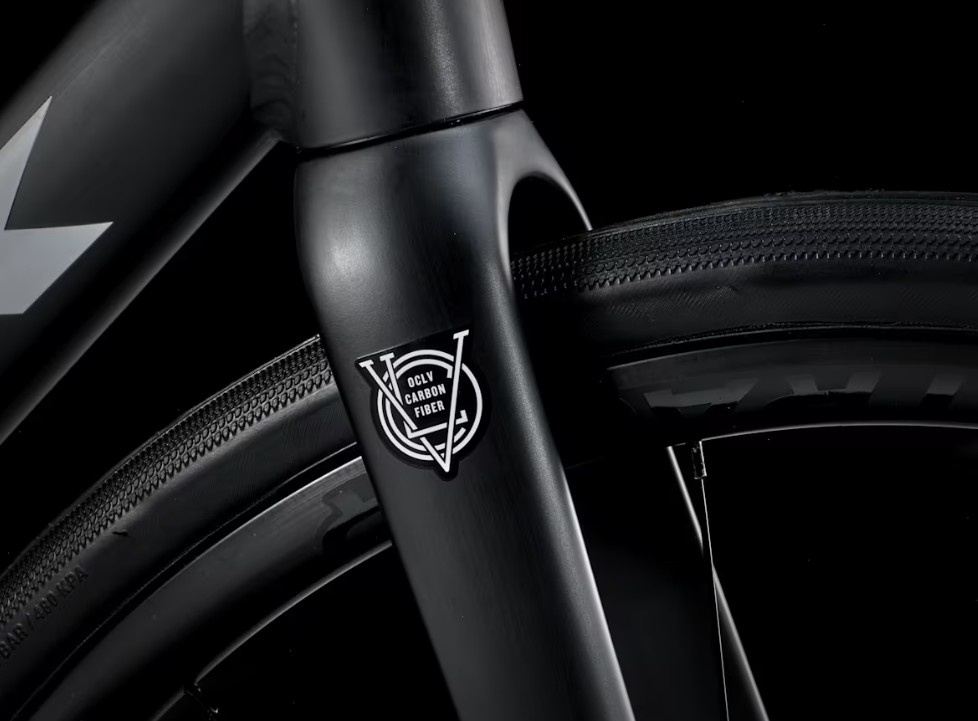

• Domane AL full carbon fork

• Tapered carbon steerer

• Internal brake routing

• Flat-mount disc

• 12×100 mm front thru-axle

• Fender mounts

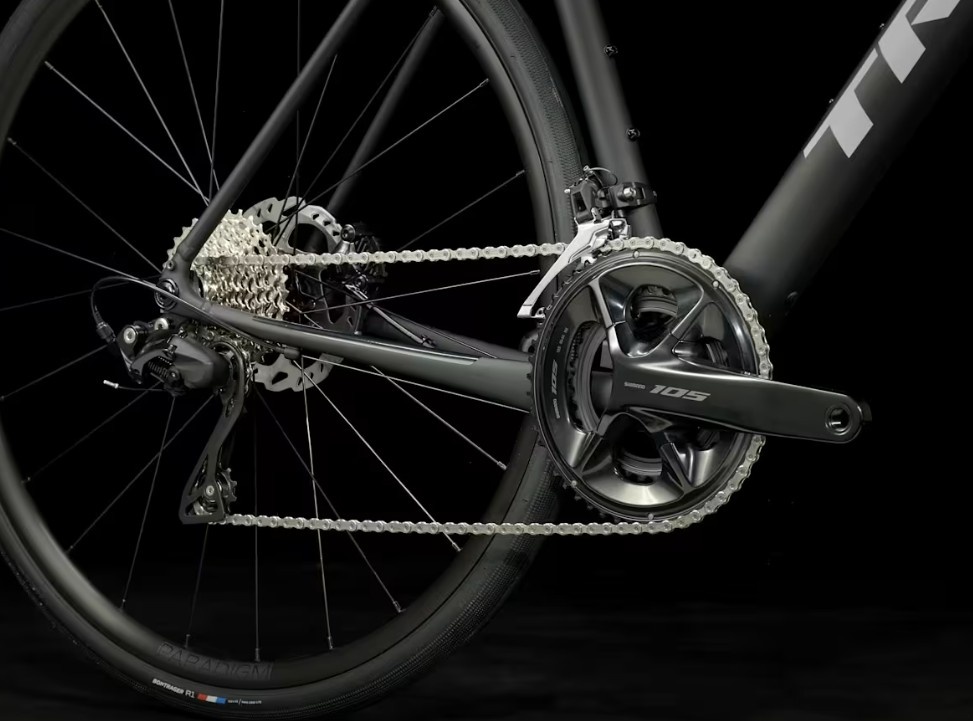

Drivetrain

• Shifters: Shimano 105 12-speed

• Front Derailleur: Shimano 105

• Rear Derailleur: Shimano 105 (compatible up to 36T)

• Crankset: Shimano 50/34

• Cassette: 11-34, 12-speed

• Bottom Bracket: Shimano threaded BSA, 68 mm

Brakes

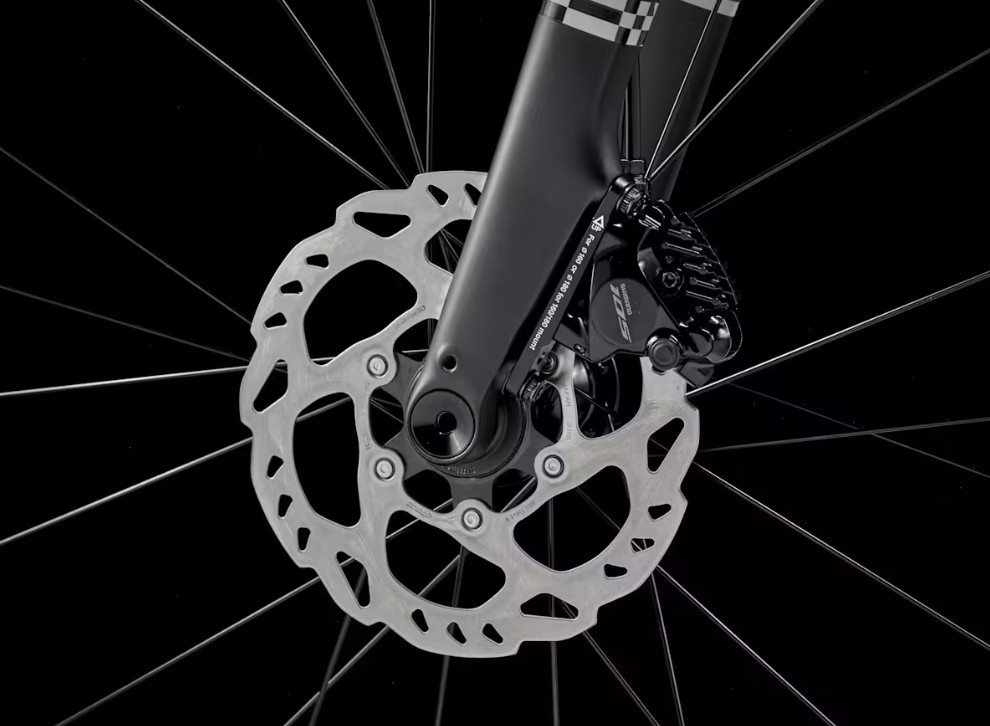

• Shimano 105 hydraulic disc brakes

• CenterLock rotors

• 160 mm rotor compatibility (front and rear)

Wheels

• Bontrager Paradigm SL, tubeless-ready

• 24-hole rims

• 21 mm internal width

• Sealed bearing hubs

• 12 mm thru-axles (100 mm front / 142 mm rear)

Tires

• Bontrager R1 Hard-Case Lite

• 700×32 mm

• Tubeless-ready

Cockpit

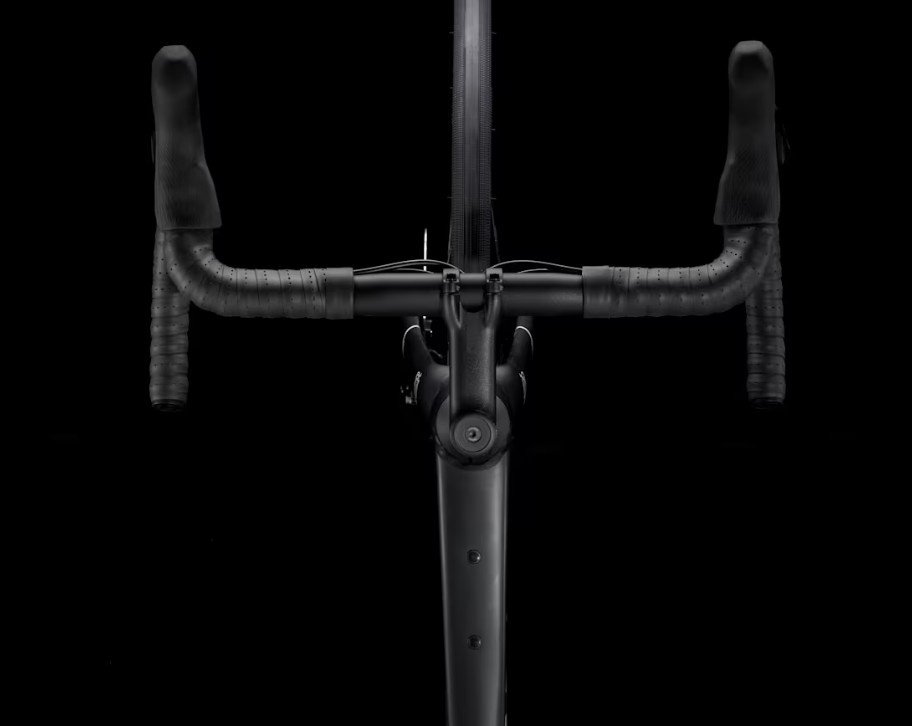

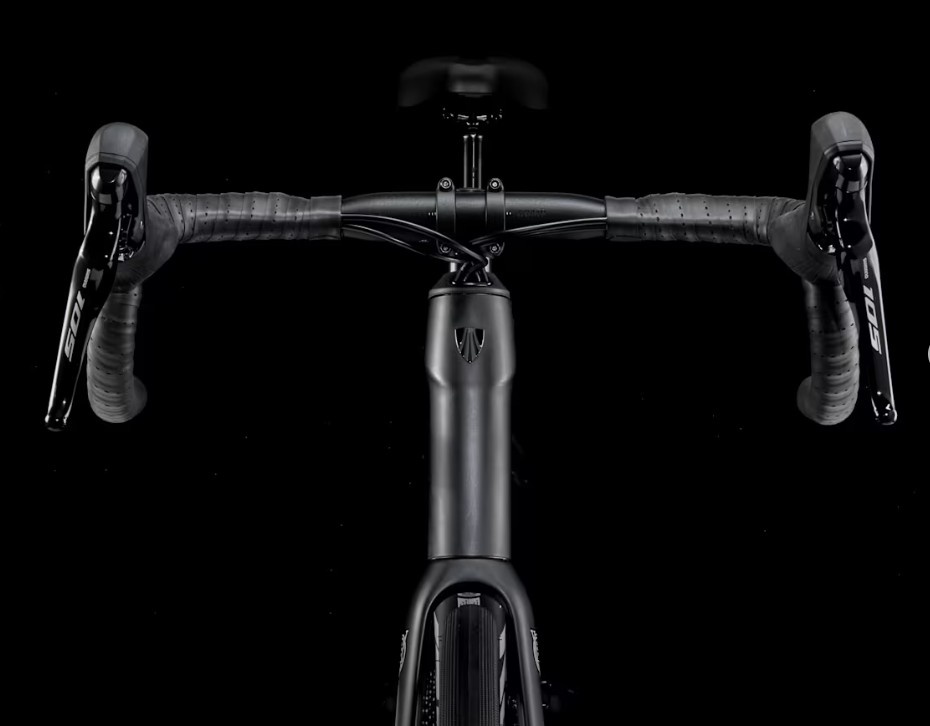

• Handlebar: Bontrager Elite IsoZone VR alloy

• Stem: Bontrager Elite, Blendr-compatible

• Handlebar Tape: Bontrager Supertack

Seatpost & Saddle

• Seatpost: Bontrager Comp alloy, 27.2 mm

• Saddle: Bontrager Verse Short, steel rails

Weight

• Approx. 9.85 kg (size 56)

Max Load

• Combined rider + bike + cargo: approx. 125 kg
