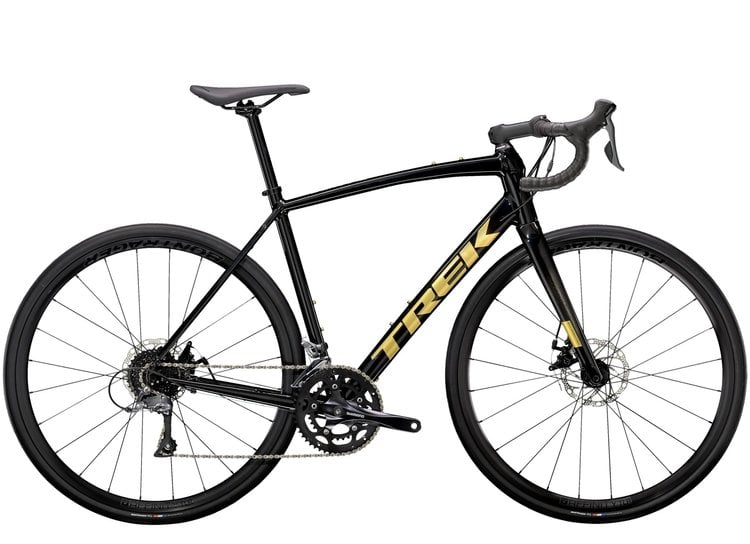

Product details
Frameset
| Frame | 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12mm thru axle |
|---|---|
| Fork | Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle |
| Frame fit | Endurance |
Wheels
| Hub front | Formula RX-512 alloy, 6-bolt, 100x12mm thru axle |
|---|---|
| Skewer front | Bontrager Switch thru axle, removable lever |
| Hub rear | Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |
| *Rim | Size: 49, 52, 54, 56, 58, 61 Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, presta valve |
| Size: 49, 52, 54, 56, 58, 61 Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, presta valve |
|
| Spokes | 14g stainless steel |
| Tire | Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c |
| Max tire size | 35c without fenders, 32c with fenders |
Drivetrain
| Shifter | Shimano Claris R2000, 8 speed |
|---|---|
| Front derailleur | Shimano Claris R2000, 31.8mm clamp |
| Rear derailleur | Shimano Claris R2000, long cage, 34T max cog |
| *Crank | Size: 49, 52, 54 Shimano RS200, 50/34 (compact), 170mm length |
| Size: 56, 58, 61 Shimano RS200, 50/34 (compact), 175mm length |
|
| Bottom bracket | Shimano UN30, 68mm, threaded cartridge, 110mm spindle |
| Cassette | Shimano HG31, 11-32, 8 speed |
| Chain | Shimano Sora HG71, 8 speed |
Components
| *Saddle | Size: 49, 52 Bontrager P3 Verse Comp, steel rails, 155mm width |
|---|---|
| Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145mm width |
|
| *Seatpost | Size: 49 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length |
| Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length |
|
| *Handlebar | Size: 49 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width |
| Size: 52 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width |
|
| Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width |
|
| Size: 58, 61 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem | Size: 49 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length |
| Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length |
|
| Size: 56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length |
|
| Size: 61 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length |
|
| Headset | FSA Integrated, sealed cartridge bearing, 1-1/8'' top, 1.5'' bottom |
| Brake | Tektro C550 mechanical disc brake, dual piston, flat mount, 160mm rotor |
Weight
| Weight | 56 - 10.55 kg / 23.26 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 275 pounds (125 kg). |
| Sizing | ||
|
Size-table |
||
| Size | Rider Height | Inseam |
| 44 | 150 - 153 cm | 71 - 73 cm |
| 4'11" - 5'0" | 28" - 29" | |
| 47 | 152 - 158 cm | 71 - 75 cm |
| 5'0" - 5'2" | 28" - 30" | |
| 50 | 158 - 163 cm | 74 - 77 cm |
| 5'2" - 5'4" | 29" - 30" | |
| 52 | 163 - 168 cm | 76 - 79 cm |
| 5'4" - 5'6" | 30" - 31" | |
| 54 | 168 - 174 cm | 78 - 82 cm |
| 5'6" - 5'9" | 31" - 32" | |
| 56 | 174 - 180 cm | 81 - 85 cm |
| 5'9" - 5'11" | 32" - 33" | |
| 58 | 180 - 185 cm | 84 - 87 cm |
| 5'11" - 6'1" | 33" - 34" | |
| 60 | 185 - 190 cm | 86 - 90 cm |
| 6'1" - 6'3" | 34" - 35" | |
| 62 | 190 - 195 cm | 89 - 92 cm |
| 6'3" - 6'5" | 35" - 36" | |
